Back to Rotary tillers UM

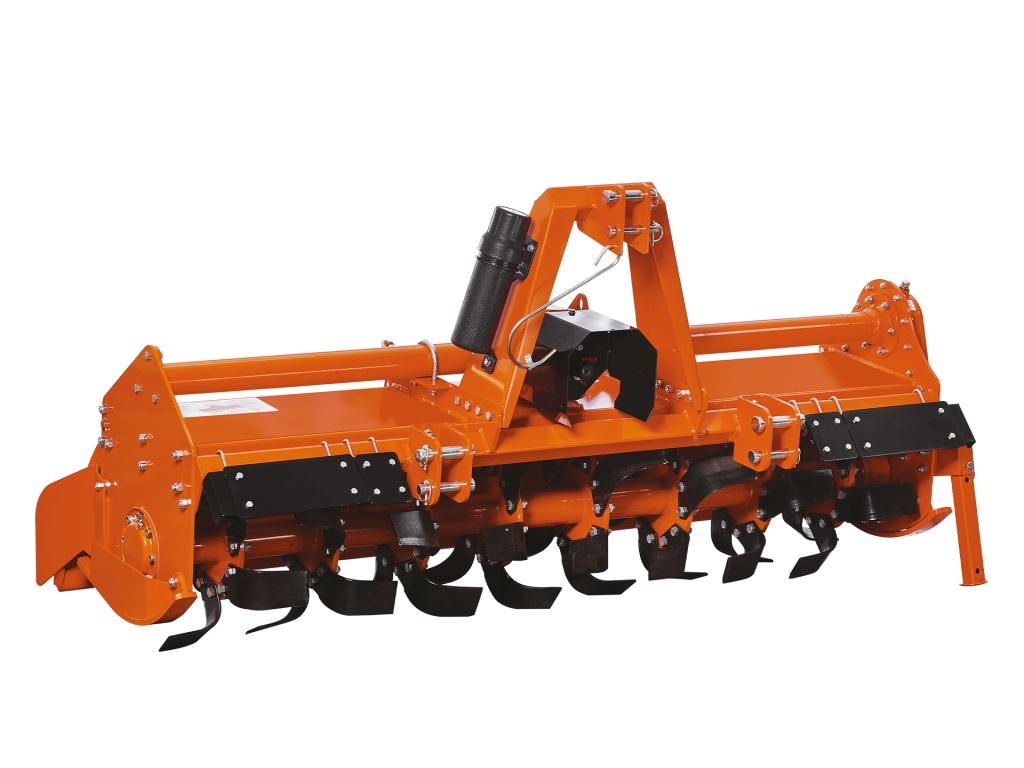

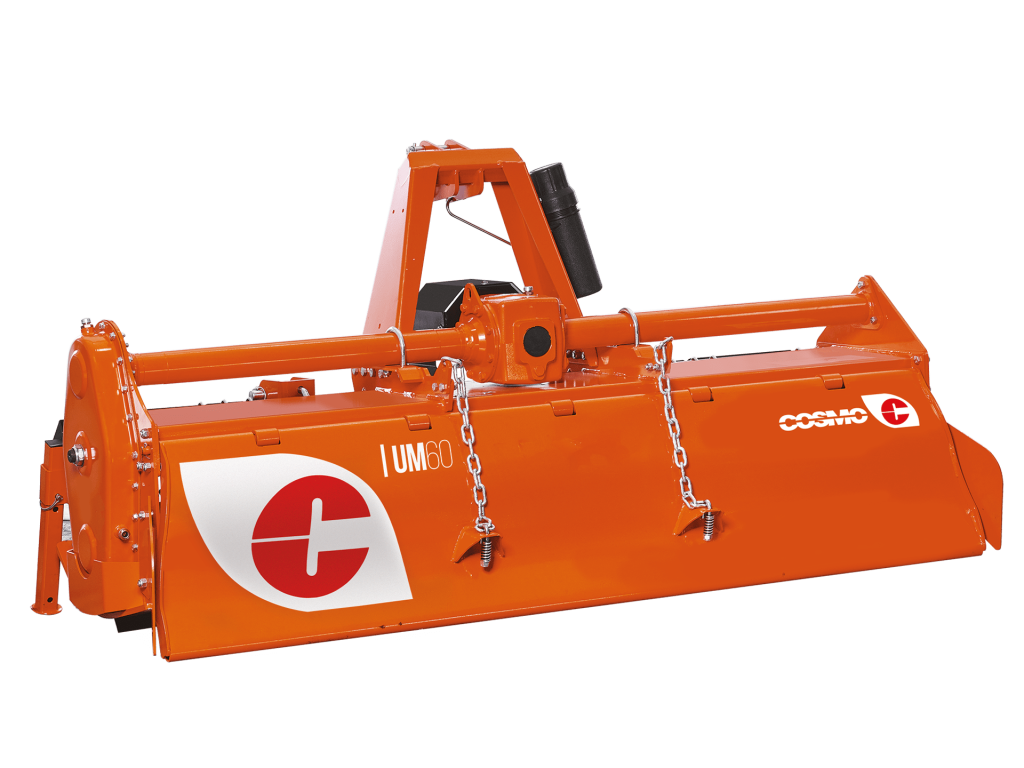

The UM series is suitable for tractors from 35 to 50 hp with category 1 hitch. The UM models are medium-duty and dependable on demanding soils, appropriate also for vineyards and orchards.
Models available
53566072
Recommended horse power
25-50 CV
Good for
Rotary tillers
Standard Equipment
Data Sheet
| UM 53 | UM 56 | UM 60 | UM 72 | ||
|---|---|---|---|---|---|
| Overall dimension | mm | 1500X940X720 | 1650x940x720 | 1775x940x720 | 1970x940x720 |
| Tilling width | mm | 1350 | 1500 | 1650 | 1850 |
| Tractor HP range | - | 25-50 | |||
| 3-point hitch type | CAT. 1 (Quick hitch compatible) | ||||
| No. of flanges on rotor | 7 | 7 | 8 | 9 | |
| No. of tines per flange | 6 | ||||
| Number of tines | 42 | 42 | 48 | 54 | |
| Size of blade | Curved | ||||
| PTO input speed | rpm | 540 | |||
| Rotor shaft speed | rpm | 245 | |||
| Side transmission drive | Gears | ||||
| Max working depth | mm | 180 | |||
| Rotor tube diameter | mm | 76 | |||
| Rotor swing diameter | mm | 434 | |||
| Weight | Kg | 256 | 262 | 285 | 310 |
Video
Guarda il video del prodotto UM
Optional
