Back to Flail mowers DT

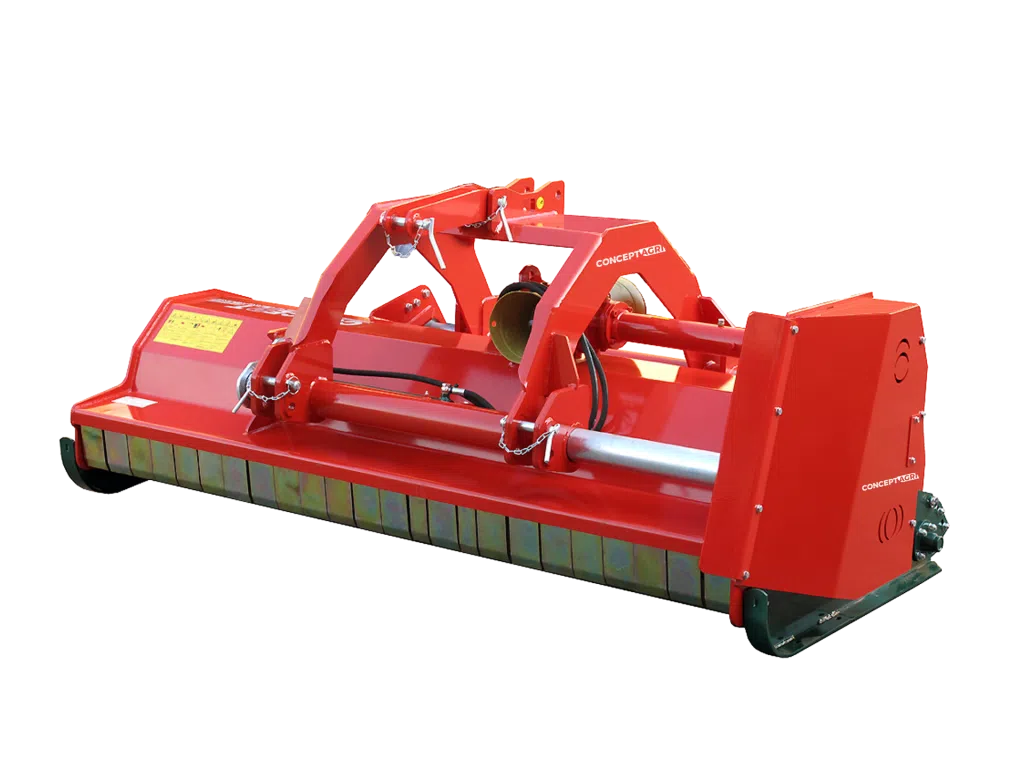

Heavy duty flail mower for large farms, contractors and forestry landscaping. For tractors up to 150 Hp
Extremely versatile and robust the DT can be used from grass cutting to shredding woods up to Ø250 mm.
Double skinned chassis for an overall thickness of 14 mm.
Heavy duty ANTI SHOCK rotor with large hammers and double counter knife.
Reversible headstock with hydraulic side shift.
High quality belt side transmission, the 280 300 can have double drive.
Adjustable rear roller with QUICK FIT hubs and side skids to set optimal cutting height.
Models available
200240280
Recommended horse power
90-180 CV
Good for
Flail mowers
Standard Equipment
Data Sheet
| DT 200 | DT 240 | DT 280 | ||
|---|---|---|---|---|
| Overall dimension | mm | 2180x1300x1200 | 2580x1300x1200 | 2980x1300x1200 |
| Tilling width | mm | 2000 | 2400 | 2800 |
| Tractor HP range | - | 90-180 | ||
| 3-point hitch type | Cat. II | |||
| No. of hammers | 18 | 22 | 26 | |
| No. blades | 54 | 66 | 78 | |
| Rotor thickness | mm | 12 | ||
| Frame thickness | mm | 6+8 | ||
| Roller thickness | mm | 6 | ||
| Rotor tube diameter | 194 | |||
| Roller diameter | 200 | |||
| PTO input speed | rpm | 1000 | ||
| Transmission type | rpm | 5 Belts | ||
| Gears ratio | 1:3 | |||
| Weight | kg | 1150 | 1250 | 1350 |
